Certified EX protection solutions

Our smart modular system offers certified EX protection devices (in accordance with IECEx, ATEX and KOSHA) for safe use in hazardous areas with an explosion risk.

Certified - Robust - Safe

Selecting the right EX protection devices

Our certified EX-protected forklift trucks are used wherever explosive substances are manufactured, processed, transported and/or stored and where there is a potentially explosive atmosphere. We design EX protection solutions precisely according to your specific requirements and needs - and manufacture them in-house at our Technology Center in Laufen. We are happy to integrate your periphery-critical applications and attachments such as sideshifters, drum tippers or feed forks, provided they have the necessary certificates. Our employees have decades of experience and EX protection expertise - and will also be happy to provide your employees with competent and comprehensive advice and training for your EX protection requirements.

Including an integrated energy management system suitable for explosion protection

EX protection expertise and intelligent, flexible and certified solutions are also required for batteries in such explosive atmospheres. Our patented LiFePO4 "LiTEx" battery with integrated energy management system is suitable for Zone 1/21 and Zone 2/22 and can be easily recharged in these zones as well as in normal, non-explosive zones. With the help of an ATEX-certified, pressurized charger, both the time-consuming, complicated battery change outside the zones and outgassing are eliminated. This saves the high costs of a separate battery charging room with extraction.

Our requested explosion protection solutions are always very individual and special.

Jörg Backhaus, Electrical Engineering, ATEX Representative

Why choose Stöcklin for EX protection solutions:

Decades of experience and expertise in the field of explosion protection

Certified manufacturer (ATEX, IECEx, KOSHA)

In-house production, workshop and service management at the Technology Center Laufen, CH

Maximum availability thanks to experienced service management teams

Highly efficient, patented ATEX Stöcklin lithium-ion system, especially for intermediate charging within EX protection zones

Our product solutions at a glance

Deichsel Niederhubgerät Zone 1/21 EXP20 EXP 20 Zone 1/21

Low lift truck

Available in the following versions

Wet Area Explosion Area Cooling Area Deep Freeze Area
Deichsel Niederhubgerät Zone 1/21 EXP20 EXP 20 Zone 1/21

Low lift truck

Available in the following versions

Wet Area Explosion Area Cooling Area Deep Freeze Area

Drawbar low-lift device zone 1/21

Optimum handling - best quality - long service life

Dimensions and appearance like a standard device, with high flexibility, safe operation, even on slopes, as well as optimum driving and lifting characteristics, including low power consumption.

Technical specification
Load capacity up to 2500 kg
Drive AC travel drive
Motor AC lift motor
System CAN-BUS technology
Zones ATEX 1 (2G) and 21 (2D)
Download product data sheet
Deichsel Hochhubgerät Zone 1/21 EXS16 EXS/EXI 16 Zone 1/21

High lift truck

Available in the following versions

Wet Area Explosion Area Cooling Area Deep Freeze Area
Deichsel Hochhubgerät Zone 1/21 EXS16 EXS/EXI 16 Zone 1/21

High lift truck

Available in the following versions

Wet Area Explosion Area Cooling Area Deep Freeze Area

Drawbar high-lift unit - zone 1/21

High flexibility - safe operation - best quality

Dimensions and appearance like a standard device, with optimum handling, safe operation, optimum driving and lifting characteristics, including low power consumption and extremely easy maintenance. With or without initial lift

Technical specification
Lifting height Up to 4.8 m
Lifting capacity up to 1600 kg
Drive AC travel drive
Motor AC lift motor speed-controlled
System CAN-BUS technology
Zones ATEX 1 (2G) and 21 (2D)
Download product data sheet
Hochhubgerät mit Initialhub-EX Zone 2/22 EHI16 EHI/EFI 1600 zone 2

High lift truck

Available in the following versions

Wet Area Explosion Area Cooling Area Deep Freeze Area
Hochhubgerät mit Initialhub-EX Zone 2/22 EHI16 EHI/EFI 1600 zone 2

High lift truck

Available in the following versions

Wet Area Explosion Area Cooling Area Deep Freeze Area

High lift pallet truck with inital lift - Zone 2

Narrow aisle widths - optimum driving characteristics - powerful drives

Suitable for block storage with fast turnover and narrow aisle widths. Optimum driving characteristics and visibility when picking up and storing thanks to the centrally positioned drawbar. Powerful drives guarantee high performance.

Technical specification
Lifting height Up to 5.2 m
Load capacity up to 1600 kg, initial lift up to 3000 kg, higher residual capacities
Drive AC travel drive
Motor AC lift motor speed-controlled
System CAN-BUS technology
Zones ATEX 2/22, EX 3G
EXR 14 Zone 1/21

Reach truck

Available in the following versions

Explosion Area
EXR 14 Zone 1/21

Reach truck

Available in the following versions

Explosion Area

EXR 14 Zone 1/21 drawbar reach truck

Safe - compact - powerful

Smallest turning radius, with safe operation and optimum maneuverability. High performance thanks to AC drive and lift motors.
Including low power consumption and extremely easy to maintain.
High expansion options with a wide range of attachments and equipment options

Technical specification
Lifting height: Up to 3.9m
Lifting capacity: up to 1400kg
Motors: AC drive and AC lift speed-controlled
System: CAN-BUS
Zones: ATEX Zone 1 (2G) and 21 (2D)
EXG 12

Special solutions

Available in the following versions

Explosion Area
EXG 12

Special solutions

Available in the following versions

Explosion Area

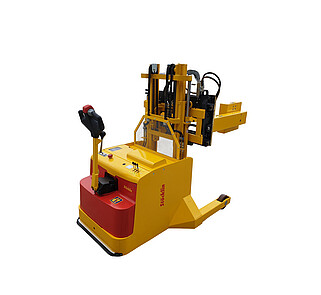

Explosion-proof forklift truck with drum tilt clamp

Optimum handling - Safe operation - Powerful

Designed for the safe and controlled moving and emptying of drums in hazardous areas. Three precisely responding hydraulic functions enable safe gripping, lifting and tilting of the drum. The mechanically steered central drive ensures high maneuverability in confined spaces. An integrated foot contact strip increases safety in daily use.

Technical specification
Load capacity 1200 kg
ATEX version
Ex II 2G IIB T4
EXG 03

Special solutions

Available in the following versions

Explosion Area
EXG 03

Special solutions

Available in the following versions

Explosion Area

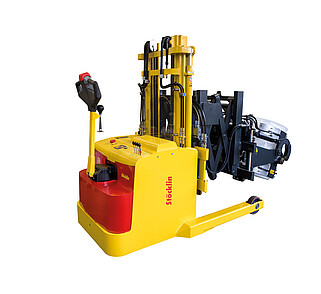

Explosion-proof stacker with drum tipper with pantograph extension

Efficient handling - controlled tipping - compact maneuverability

Ideal for precise lifting, positioning and tilting of drums in hazardous areas. The pantograph extension unit enables the load to be extended from the front. The robust spreader chassis, the hydraulic drum tilting clamp and finely controllable hydraulic functions ensure safe and efficient handling. The mechanically steered central drive allows precise maneuvering even in confined spaces.



Alternatively also available as an EXR drawbar pusher mast.

Technical specification
Load capacity 300 kg
ATEX version
Ex II 2G IIB T4
EXV 12

Special solutions

Available in the following versions

Explosion Area
EXV 12

Special solutions

Available in the following versions

Explosion Area

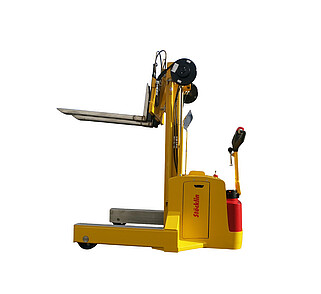

Explosion-proof forklift trucks with feed forks and fork tilt

Flexible mounting - Fine adjustment - Safe maneuvering

For safe and precise material handling in hazardous areas.
The hydraulically movable forks with tilt function enable targeted storage and retrieval.
Separately operable hydraulic functions enable controlled control of lift, feed and fork tilt.
The mechanically steered center drive ensures high manoeuvrability - even in confined spaces in hazardous areas.



Optionally available as an EXR drawbar pusher mast - instead of the feed forks.

Technical specification
Load capacity 1200 kg
ATEX version
Ex II 2G IIB T4
EXF 16

Special solutions

Available in the following versions

Explosion Area
EXF 16

Special solutions

Available in the following versions

Explosion Area

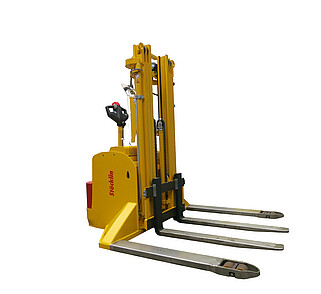

EX-protected forklift trucks with self-supporting ISO forks

Direct recording - Simple operation - Maneuverable

Designed for safe pallet and container handling in hazardous areas. Thanks to the self-supporting design, closed load carriers can be picked up quickly and directly - without support devices or additional attachments.

The hydraulic lifting function is conveniently controlled via a control unit on the tiller head - accessible from both sides and therefore ideal for flexible use. The mechanically steered central drive ensures high maneuverability, even in narrow aisles and sensitive areas.

Technical specification
Load capacity 1600 kg
Version ATEX / IECEx
Ex II 2G IIB+H2 T4, Gb
Ex II 2D IIIB T135°C, Db
Lithium Ex battery LiTex

Energy packages

Available in the following versions

Explosion Area
Lithium Ex battery LiTex

Energy packages

Available in the following versions

Explosion Area

LiTex - Lithium Ex battery

Unique - Patented - Consistently EX-capable

The world's first and patented lithium iron phosphate battery (LiFePO₄) for use in potentially explosive atmospheres - certified for ATEX zones 1/21 and 2/22. The pressurized encapsulated design and integrated energy management system ensure maximum operational safety and efficiency - even under extreme conditions.

A particular advantage: intermediate charging is possible directly in the Ex zone - with the pressurized charger, which is also ATEX-certified. This eliminates time-consuming charging changes outside the zone, which noticeably speeds up processes.

Technical data:

LiFePO₄ technology (24 V / 195 Ah)

Flameproof encapsulated (Ex d)

ATEX certification for zone 1/21 (gas/dust)



Version ATEX Zone 1/21 (gas/dust)

Ex II 2G IIB+H2 T4

Ex II 2D IIIB T135°C

Ex charger for LiTex

Energy packages

Available in the following versions

Explosion Area
Ex charger for LiTex

Energy packages

Available in the following versions

Explosion Area

Pressurized LiTex charger

Rethinking - process reliability - cost efficiency

For safe and time-saving intermediate charging directly in Zone 1/21 hazardous areas. Thanks to the pressurized design (Ex-p), battery replacement outside the Ex zone is no longer necessary - a clear advantage for operational safety, process stability and efficiency.

In addition, the usual requirements for separate charging rooms with extraction are no longer necessary, which significantly reduces investment and operating costs.



Technical details:
Power: IEB HF 24V/100A
Housing dimensions: (L x W x H) : 760 mm x 760 mm x 300 mm
Weight: approx. 60 kg


ATEX marking:

Ex II 2G IIB+H2 T4 (gas)
Ex II 2D IIIB T135°C (dust)

Ex batteries lead-acid and gel

Energy packages

Available in the following versions

Explosion Area
Ex batteries lead-acid and gel

Energy packages

Available in the following versions

Explosion Area

Ex batteries lead-acid and gel

Robust - Proven - Standard

Proven lead-acid and gel batteries from the manufacturer Enersys Hawker are available for our EX-protected industrial trucks. These energy storage systems offer a robust and durable solution for classic application scenarios in potentially explosive atmospheres - either in fixed or alternating operation.

The batteries meet the requirements of ATEX / IECEx 2G/2D and have been tried and tested both technically and logistically. Depending on the variant, they can be permanently installed or exchanged from above using the exchange procedure.

Available versions:

Lead-acid 24V/375Ah, 3PzS375, fixed installation

Lead-acid 24V/345Ah, 3PzV345, top-change operation

Gel battery 24V/330Ah, 3PzV330, fixed or exchangeable

HF chargers

Energy packages

Available in the following versions

HF chargers

Energy packages

Available in the following versions

Charger IEB Filon Futur E

User-friendly - Gentle - Sustainable

A high-frequency-based charger for the safe and energy-efficient charging of Ex-certified lead-acid and gel batteries - outside potentially explosive atmospheres. Equipped with a suitable charging plug, mains connection and an intuitive Easy Touch display, it ensures convenient, fast and battery-friendly charging.

Thanks to state-of-the-art HF technology, the device offers maximum energy efficiency with minimal energy loss - ideal for sustainable use in multi-shift operation.


Available version:
24 V / 50 A, suitable for:
Lead-acid batteries 24 V / 345-375 Ah (3PzS)
Gel batteries 24 V / 330 Ah (3PzV)


Further capacities and battery adaptations upon request.


Housing variants:

Enclosure with IP protection class 54

Air-conditioned housing

Deep-freeze housing

Our certifications:

Sustainable quality and availability: our comprehensive service portfolio for your industrial truck fleet

Fleet management

Stöcklin has proven itself on the market for years with first-class fleet management. The aim: to uncover potential for you, control the use of your mobile intralogistics equipment more efficiently, increase safety and sustainably reduce overall costs.

More

Maintenance & servicing

Complete maintenance for your intralogistics fleet, for products from all manufacturers, from hand pallet trucks and lifting platforms to heavy front loaders:

Preventive, responsive, qualified, from a single source. With maintenance and repair services that meet the requirements of our customers. This is the foundation on which we create decisive added value for you.

More

In-house workshop

Stöcklin operates a unique in-house overhaul workshop for overhauling large components or converting forklifts and driverless transport vehicles.

More

Rental service

Do you need a rental device to cover short-term order peaks or for a longer period of time? Our rental service will provide you with the right rental equipment at any time. Thanks to our own truck, you do not need an extra loading ramp.

Spare parts service

As a manufacturer, general importer and multi-brand specialist, Stöcklin is your partner for intelligent stocking and provision of original spare parts. Especially for all common forklift trucks - and for most mobile intralogistics equipment. Available around the clock, with short response times and uncomplicated contact.

More

Battery service

To ensure that your forklift trucks and other battery-powered intralogistics devices operate economically in the long term, it is not only the mechanics and electronics that need to be serviced regularly. The battery also needs care. The battery service experts at Stöcklin will work with you to find the optimum intervals for each battery.

More

Training courses

Our Stöcklin experts train your operators so that you can use your equipment fleet at full capacity in an energy-efficient, low-wear and sustainable manner.

If you have your own maintenance team, we will expand our partnership with first-class know-how for your mechanics.

More

Support

Our AGV support is backed by a 24/7 service desk - experienced technicians from our company who work with you to organize the rapid troubleshooting of your AGV devices. By telephone, by connecting to your systems (remotely) or by arranging on-site service personnel.

Case Study

Pharma/Chemistry

Merck KGaA, Darmstadt, DE

Tested and documented safety

For the science and technology company Merck KGaA, Stöcklin supplied explosion-proof industrial trucks with EX batteries as well as standard industrial trucks with lithium-ion batteries.

To Case Study

Are you looking for a certified explosion protection solution or do you have questions for our experts?

Contact us today

Contact our team
